90 Degree SPC Triggers

90° SPC Module

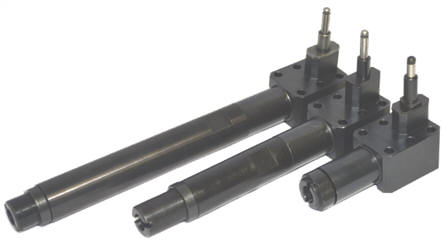

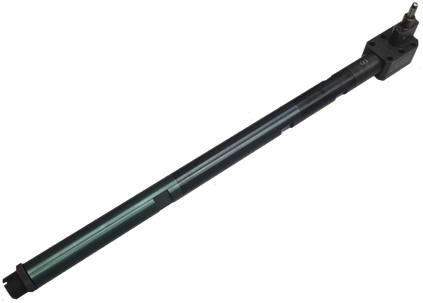

KTC- 90° SPC Modules are ideal for SPC applications where accessibility is a problem. These compact units are totally contained to be a single unit and are available for 31mm and 50mm set ups. The units come furnished with a symmetrical mounting hole pattern and are hardened with a black oxide finish. The units are supplied with 3 standard length. And also there are two extensions available. Use these extensions and standard units, a customized length can be configured.

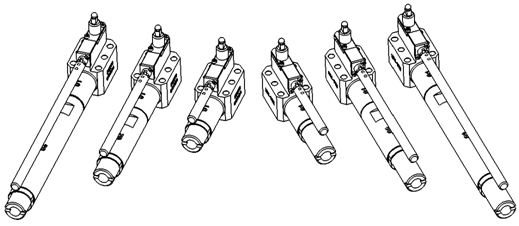

With dedicated retractors added on to KTC 90 degree SPC Modules. Now the SPC contacts are protected from damage, when the part is loaded on the checking fixture.

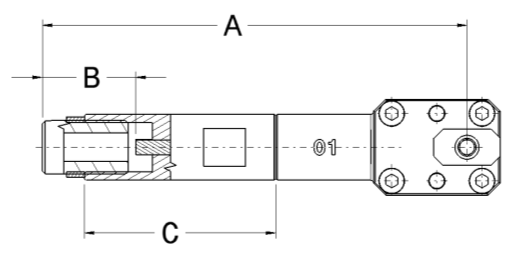

Item #	Part Number	Description	A ( mm)	B ( mm)	C ( mm)	Visual Aid
1	KTC-VTH-01-31	31 mm 90° SPC Module /Basic	77.5	31
2	KTC-VTH-01-50	50 mm 90° SPC Module/Basic	77.5	50
3	KTC-VTH-01-31-RTR	31 mm 90° SPC Module /Basic with Retractor	77.5	31
4	KTC-VTH-01-50-RTR	50 mm 90° SPC Module /Basic with Retractor	77.5	50
5	KTC-VTH-02-31	31 mm 90° SPC Module /Medium	141	31	63.50
6	KTC-VTH-02-50	50 mm 90° SPC Module /Medium	141	50	63.50
7	KTC-VTH-02-31-RTR	31 mm 90° SPC Module /Medium with Retractor	141	31	63.50
8	KTC-VTH-02-50-RTR	50 mm 90° SPC Module /Medium with Retractor	50	50	63.50
9	KTC-VTH-03-31	31 mm 90° SPC Module /Long	204.5	31	127.00
10	KTC-VTH-03-50	50 mm 90° SPC Module/Long	204.5	50	127.00
11	KTC-VTH-03-31-RTR	31 mm 90° SPC Module /Long with Retractor	204.5	31	127.00
12	KTC-VTH-03-50-RTR	50 mm 90° SPC Module/Long with Retractor	204.5	50	127.00
13	KTC-VTH-EXT02	02 EXTENSION			63.50
14	KTC-VTH-EXT03	03 EXTENSION			127.00

3D CAD Data is the master and to be available as per Requested .
