| Kinto Pals | ||||||||
|
|
 |
|||||||
|
With the unique features below, Kinto Pals will simplify your design and manufacturing of check fixtures , leading to cost savings and shorter delivery times.
1)Compact
and Robust Design: Fighting against a limited space to
arrange various inspection applications
is the most challenging task in design
of
checking fixtures.
Kinto Pals
will make
the gauge designs much easier and more
effortless, with the combination of
compact size and high rigidity.

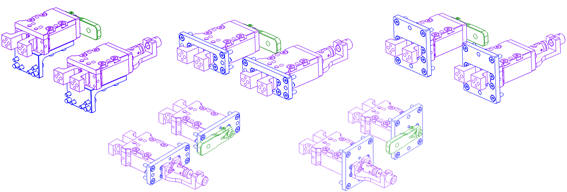

2)Versatile
Mounting Options: Offers multiple installation choices to
suit diverse application needs.

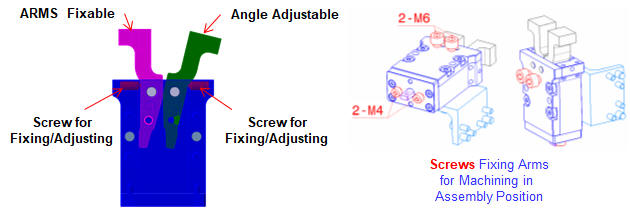

3)Adjustable
Arm Opening Angles: Easily adjust the arm opening angle or
fix it to any side.
4)Machinable
in Assembly Position: Allows for machining of component added
in assembly positions by using locking
thread hole provided.
|
||||||||
 |
||||||||

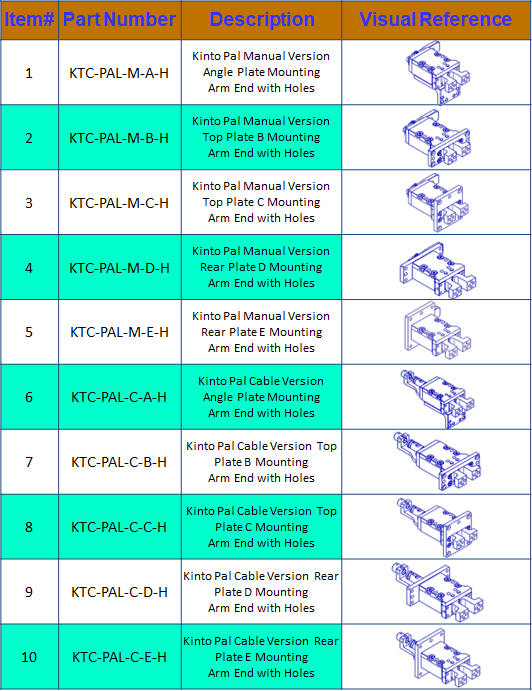

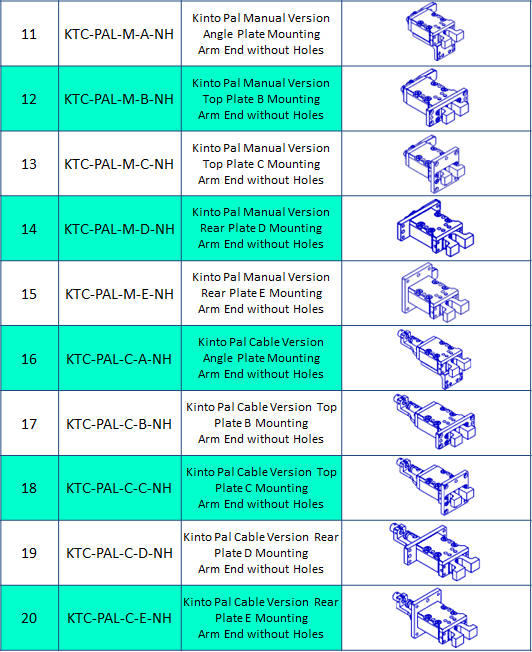

| Part Number List of Kinto Pals | ||||||||
 |
||||||||
 |
||||||||
|
