Four Way and Two Way Locators

Spring Loaded 15°Taper Locators with optional Lockout

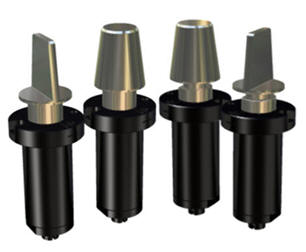

KTC Spring Loaded 15° Taper 4-way and 2-way Locators are designed totally contained to be a single unit. All of the parts are hardened throughout to 58 HRC and have a black oxide finish. They are sold with an optional Lockout feature which enables them to remain depressed, allowing the part to be located using other features when trouble shooting. The headed bushings are furnished with a Counter-bored attachment hole and a Clocking Slot that can be pre-doweled or doweled at assembly. They come standard in 4 different sizes which cover the most common holes, but can be altered if required.

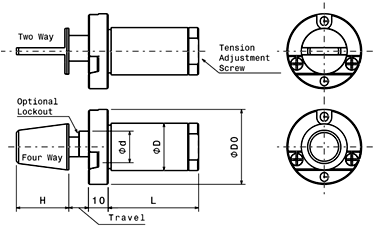

Unit:mm
Item #	Part Number	Description	Range of Locating Hole Size without altering	Range of Locating Hole Size with altering	d (mm)	D (mm)	D0 (mm)	H (mm)	L (mm)	Travel (mm)
1	KTC-FWL-008- A	Type A Four Way Locator	ɸ9 to ɸ11	ɸ8 to ɸ11	8	14	26	15	26	6
2	KTC-TWL-008- A	Type A Two Way Locator
3	KTC-FWL-008- B	Type B Four Way Locator
4	KTC-TWL-008- B	Type B Two Way Locator
5	KTC-FWL-012- A	Type A Four Way Locator	ɸ14 to ɸ16	ɸ11 to ɸ16	12	18	28	20	32	8
6	KTC-TWL-012- A	Type A Two Way Locator
7	KTC-FWL-012- B	Type B Four Way Locator
8	KTC-TWL-012- B	Type B Two Way Locator
9	KTC-FWL-016- A	Type A Four Way Locator	ɸ19 to ɸ21	ɸ16 to ɸ21	16	24	38	27	51	10
10	KTC-TWL-016- A	Type A Two Way Locator
11	KTC-FWL-016- B	Type B Four Way Locator
12	KTC-TWL-016- B	Type B Two Way Locator
13	KTC-FWL-020- A	Type A Four Way Locator	ɸ24 to ɸ26	ɸ21 to ɸ26	20	28	42	33	57	12
14	KTC-TWL-020- A	Type A Two Way Locator
15	KTC-FWL-020- B	Type B Four Way Locator
16	KTC-TWL-020- B	Type B Two Way Locator

Note: Type B has Lockout and Type A does not .

3D CAD Data available as per Requested
